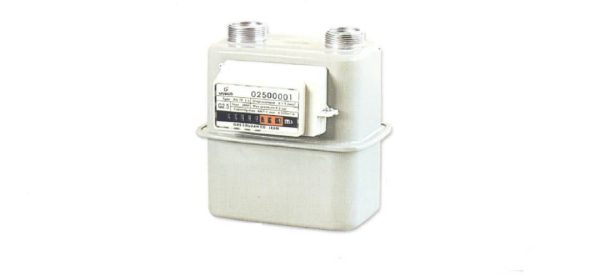

GS-84-2.5A

توضیحات

TECHNICAL DATA

Fig. 1:GS-84-2.5A Dimension

ITEM          CHARACTERISTIC          FEATURES           COMMENTS

1        Type                            GS-84-02.5A

2        G-RatingG2.5

3          max-Flow Rate ()        4

4          Min-Flow Rate ()        0.025

5          Cyclic Volume                      1.2

6          Max-Operating Pressure      0.5 bar

7          Number of Digits         5 Digits +3 Decimal

8          Scale Division                 0.2

9          Ambient Temperature          -29 +60

10        Accuracy                                3% For

2% For

11      Normal Inlet Pressure            18 mbar

12        ID/OD Size                                1

13        Connection Type                      Threaded

14        Connection Location                Top

15        Flange Std                                             ISO 228/1

16        Transmission System To Index     Magnetic Coupling

17        Measuring Fluid                        Air/Natural Gas/Non Corrosion Gas/…

18        Casing                                          Steel

19        Max Pressure Loss                     4 m bar
