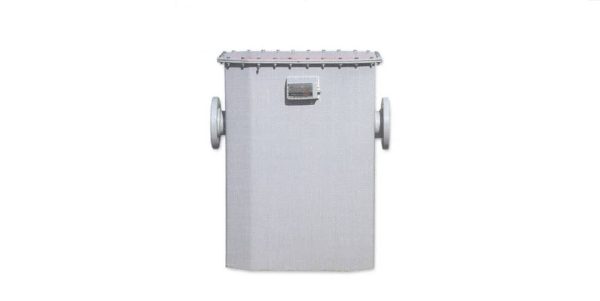

GS-77-065A

توضیحات

TECHNICAL DATA

Fig. 1:GS-77-065A Dimension

ITEM          CHARACTERISTIC          FEATURES           COMMENTS

1        Type                            GS-77-065A

2        G-Rating                      G65

3          max-Flow Rate ()        100

4          Min-Flow Rate ()        0.65

5          Cyclic Volume                      55

6          Max-Operating Pressure      0.5 bar

7          Number of Digits         6 Digits +2 Decimal

8          Scale Division                 2

9          Ambient Temperature          -29 +60

10        Accuracy                               3% For

2% For

11        Normal Inlet Pressure            18 mbar

12        ID/OD Size                               3”

13        Connection Type                      Flange

14        Connection Location                Side

15        Flange Std                                              ANSI  B16.5 A105

16        Transmission System To Index     Magnetic Coupling

17        Measuring Fluid                        Air/Natural Gas/Non Corrosion Gas/…

18        Casing                                          Steel

19       Max Pressure Loss                     4 mbar
