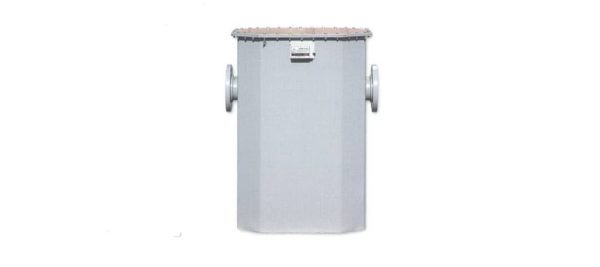

GS-78-0100A

توضیحات

TECHNICAL DATA

Fig .I : GS-78-0100A Dimension

ITEM          CHARACTERISTIC          FEATURES           COMMENTS

1          3          max-Flow Rate ()        160

4          Min-Flow Rate ()        1

5          Cyclic Volume                      120

6          Max-Operating Pressure      0.5 bar

7          Number of Digits         7 Digits +1 Decimal

8          Scale Division                 20

9          Ambient Temperature          -29 +60

10        Accuracy                                3% For

2% For

11        Normal Inlet Pressure            18 mbar

12        ID/OD Size                                4”

13        Connection Type                      Flange

14        Connection Location                Side

15        Flange Std                                  Ansi B16.5 A105

16        Transmission System To Index     Magnetic Coupling

17        Measuring Fluid                        Air/Natural Gas/Non Corrosion Gas/…

18        Casing                                          Steel

19        Max Pressure Loss                     4 m bar              Type                                       GS-78-0100A

2          G-Rating                                 G100
