GS-84-01

توضیحات

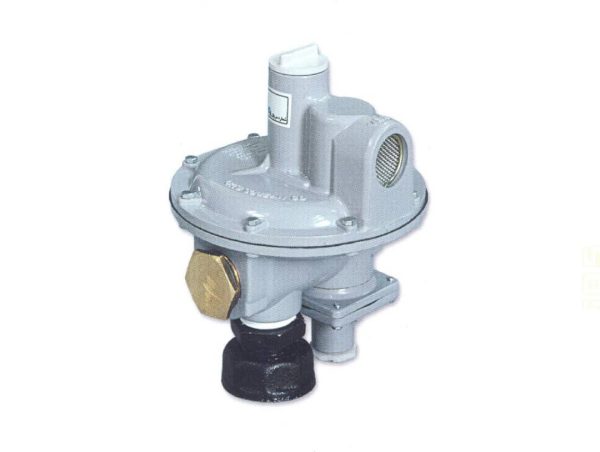

GAS PRESSURE REGULATOR

Technical DataType: GS-84-01

Inlet pressure                                    1.03- 4 bar(15-60 psig)

Outlet Pressure                                 15.3- 18.2 m bar (-  psig )

Capacity                                                6/h

Connection                                                                Inlet          NPTB

Outlet    1” NPTB (two outlet connections)

Vent ” NPT                    Die Cast Aluminum

Body                                    Die Cast Aluminum

Material                                              Diaphragm housing           Reinforced Rubber; NBR

Diaphragm                          NBR

Seat                                      Steel

Safety DevicesLever

Low Pressure Safety Shut Off Valve

High Pressure Safety Shut Off Valve

Operating TemperatureSafety Relife Valve

Dimension  (-29,+60)°c

152×178 mm
